Water Pump Bearing

What Is a Water Pump Bearing?

A water pump bearing supports the rotating shaft inside a pump, holding it steady while it spins to move water or another liquid through the system. Because pumps often sit in wet, humid, or outdoor spots, this bearing needs extra protection against moisture compared to a bearing used in a dry indoor machine.

Most water pump bearings use a sealed design, closed on one or both sides with a rubber seal or metal shield, so water and dust cannot easily reach the balls or rollers inside. The grease packed inside is also chosen to resist washing out and to keep working even if a small amount of moisture does get in.

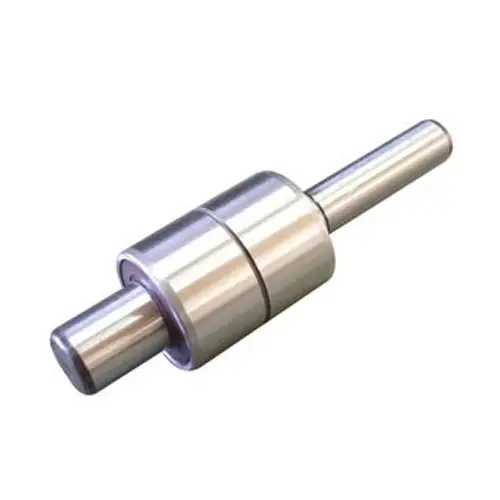

Some pump designs use a special combination bearing that packs a ball bearing and a roller bearing into one compact unit. This lets a single bearing support both the radial push from the spinning shaft and a small amount of side-to-side thrust, which is common in engine-driven water pumps where space around the shaft is limited.

Water Pump Bearing vs Standard Bearing: What Is the Difference?

A standard bearing used in a dry, indoor machine often has light or no sealing, since dust and moisture are not a major concern there. A water pump bearing is built with proper sealing, water-resistant grease, and sometimes rust-resistant material, since it must keep working despite constant exposure to moisture, splash, or humid air around the pump housing.

Types of Water Pump Bearings

These moisture-resistant bearings are grouped by their sealing method and material:

Sealed Deep Groove Water Pump Bearing

A standard ball bearing fitted with rubber seals on both sides, keeping water and dust away from the rolling elements. It is the most common type for domestic and light industrial pumps.

Shielded Water Pump Bearing

Similar to the sealed type, but uses thin metal shields instead of rubber seals. It offers some protection while allowing slightly freer running, suited to moderate moisture conditions.

Stainless Steel Water Pump Bearing

Made from rust-resistant stainless steel rather than standard bearing steel, this type suits pumps handling food-grade liquids, saltwater, or other conditions where corrosion is a serious risk.

Combination Water Pump Bearing

This design combines a ball bearing and a roller bearing in one unit, giving support for both radial and light axial load in a single compact part. It is common in automotive and engine-driven water pumps.

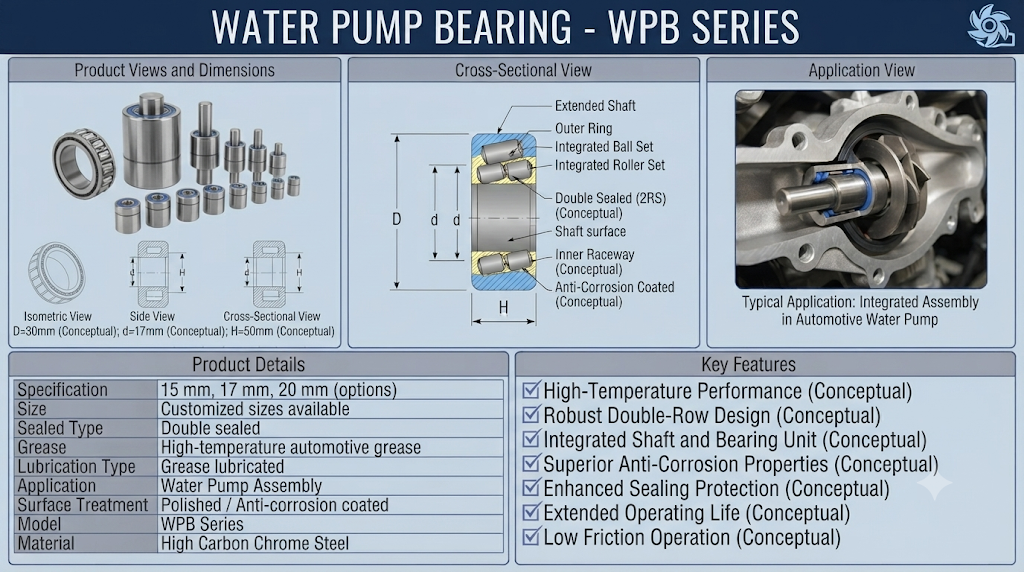

Water Pump Bearing: Part Numbers, Sizes & Applications

The table below shows common water pump bearing types, their usual size range, and where each is typically fitted. Share your pump model or shaft size with our team for an exact match.

Benefits of Choosing the Right Water Pump Bearing

• Keeps Moisture Out: Proper sealing stops water and dust from reaching the rolling parts, extending working life.
• Runs Longer Without Failure: Water-resistant grease keeps friction low even with occasional moisture exposure.
• Resists Rust and Corrosion: Stainless steel options handle wet or chemical-heavy conditions without breaking down.
• Saves Space in Compact Pumps: Combination bearings support radial and axial load together in a single small unit.
• Reduces Unexpected Downtime: A pump bearing built for its environment is far less likely to fail without warning.
• Available in Common Standard Sizes: Many pump bearings match widely used bore and outer diameter sizes, easing replacement.

Water Pump Bearing Needs Across Different Climates and Industries

Humid coastal regions and dry, dusty inland sites put very different demands on a water pump bearing, and our export markets cover both extremes. In Sri Lanka and Indonesia, high humidity and frequent rainfall mean pump bearings on irrigation and processing lines need strong sealing and water-resistant grease to avoid early rusting. Across the UAE and Kuwait, the challenge shifts toward heat and fine dust settling into cooling and desalination pump systems, calling for a shielded or sealed bearing paired with a grease that holds up under high temperature. South Africa's mining sites and Nigeria's borehole and agricultural pumps often run in muddy, gritty conditions, where a well-sealed bearing prevents dirt from cutting bearing life short. Egypt's irrigation networks and Thailand's food and beverage plants both value stainless steel water pump bearings where hygiene or corrosion resistance is non-negotiable. Wherever a pump runs — worldwide, in any climate — matching the bearing's sealing and material to the working environment is what keeps the pump itself out of the repair queue.

How to Select the Right Water Pump Bearing

• Check the Exposure Level: Occasional splash, constant humidity, or full water contact each call for a different sealing level.
• Match Bore, Outer Diameter, and Width: These sizes must match the pump shaft and housing exactly for a correct fit.
• Consider the Liquid Being Pumped: Saltwater, chemicals, or food-grade liquids may call for stainless steel construction.
• Plan for Running Speed and Heat: High-speed or hot-running pumps need a grease rated for that temperature range.

Common Mistakes to Avoid When Choosing a Water Pump Bearing

• Using an Unsealed Bearing in a Wet Spot: This lets moisture in almost immediately, leading to fast rusting and failure.
• Ignoring the Grease Type: Standard grease can wash out quickly where a water-resistant grade is actually needed.
• Skipping Material Checks for Corrosive Liquids: A standard steel bearing will rust fast in saltwater or chemical duty.
• Overlooking Combination Bearing Needs: Some pump shafts need both radial and axial support, which a plain ball bearing alone cannot give.

Simple Maintenance Tips for Longer Life

Check the pump housing and bearing seal area for water staining or rust marks during routine service, since this often signals a failing seal. Listen for a rough or grinding sound during running, which usually means water or grit has reached the rolling parts. Keep to the recommended greasing schedule, and replace the bearing promptly once seal damage is noticed, since a failed seal on a water pump bearing can quickly turn into a full pump breakdown.
